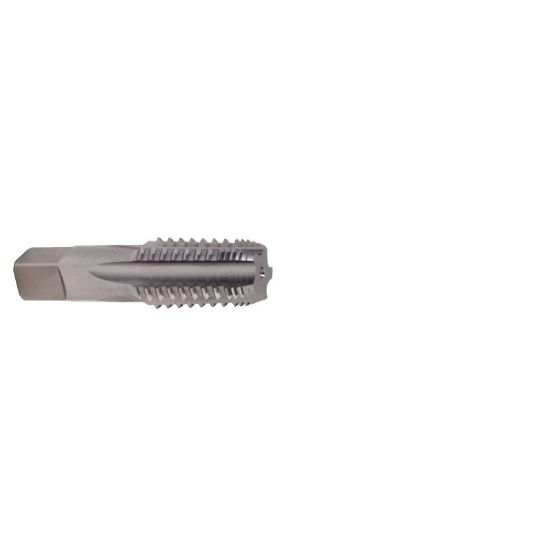

YG-1 T7505700 3/4-14.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7505700
Delivery date: 3-5 days
$100.20

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Application Skip Tooth Pipe, Pipe Tapping, Tapping
Performance Rating General Performance
Dimensional Specifications
Thread Limit PIPE
Overall Len 3.2500 82.55MM
Tap Square 0.6790
Tap Chamfer 2.0P-3.0P
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Length Type Standard
Thread Size 3/4"
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Tap Type Pipe
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
