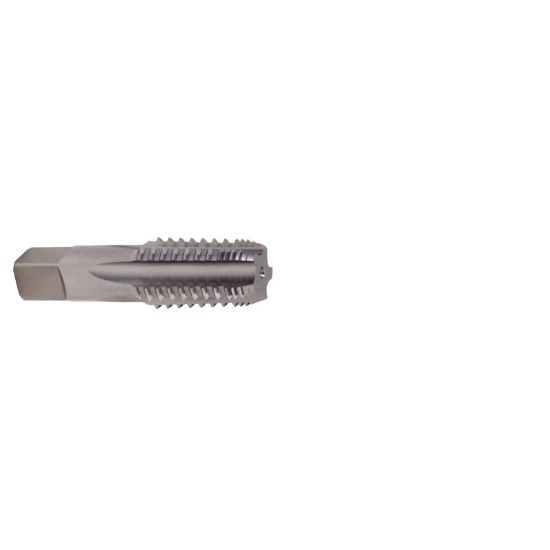

YG-1 T7505560 1/2-14.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7505560
Delivery date: 3-5 days
$70.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Pipe Tapping, Tapping, Skip Tooth Pipe
Package Size 1
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Limit PIPE
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Tap Square 0.5150
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 3.1250 79.38MM
Tap Type Pipe
Thread Size 1/2"
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
