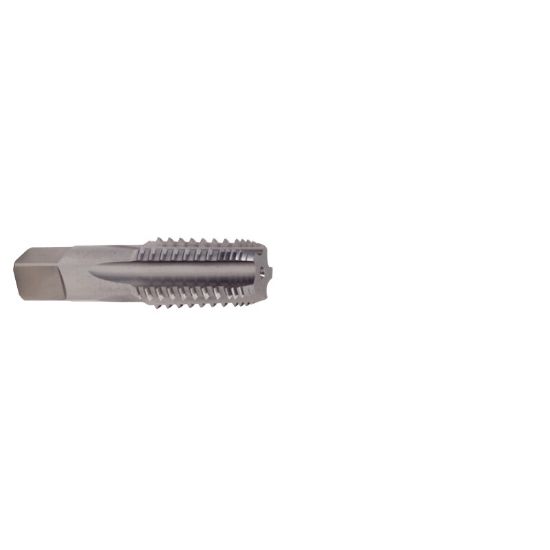

YG-1 T7505400 1/4-18.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7505400
Delivery date: 3-5 days
$35.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Skip Tooth Pipe
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5620 14.27MM
Thread Type NPT/NPTF/ANPT
Length Type Standard
Overall Len 2.4370 61.90MM
Thread Size 1/4"
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Tool Material Steel
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Thread Pitch 18.00TPI
Thread Limit PIPE
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
