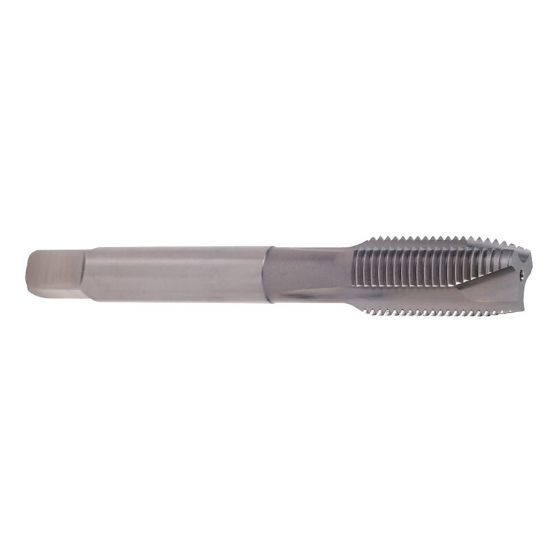

YG-1 T7436423 1/4-28.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7436423
Delivery date: 3-5 days
$9.56

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Tap Style STI
Dimension Standard ANSI/ANSI
Drill Range 0.2598 6.60MM
Thread Size 1/4"
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Limit H3/GH3
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Square 0.2380
Thread Pitch 28.00TPI
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
