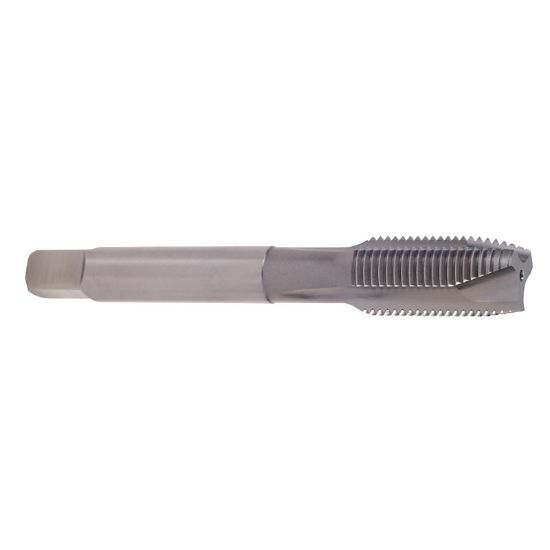

YG-1 T7436323 No.10-24.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7436323
Delivery date: 3-5 days
$9.24

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Size No.10
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Tap Type Plug
Tool Material Steel
Drill Range 0.2008 5.10MM
Length Type Standard
Tap Style STI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 24.00TPI
Thread Limit H3/GH3
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
