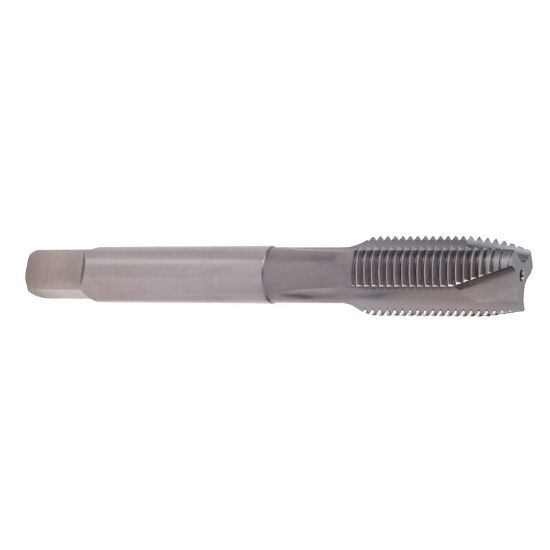

YG-1 T7436283 No.8-32.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7436283
Delivery date: 3-5 days
$9.24

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Thread Size No.8
Tool Material Steel
Tap Square 0.1650
Tap Style STI
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Limit H3/GH3
Length Type Standard
Shank/Pilot Dia 0.2200 5.59MM
Flutes/Inserts 2
Drill Range 0.1732 4.40MM
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
