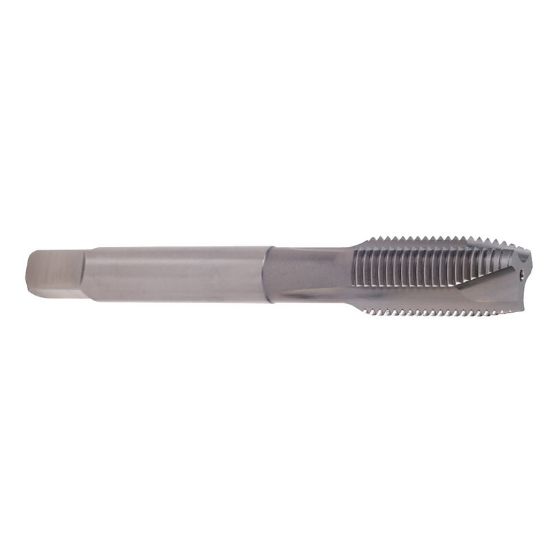

YG-1 T7436282 No.8-32.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7436282
Delivery date: 3-5 days
$9.24

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size No.8
Machine Side Connection Type Tap Collet
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit H3/GH3
Shank/Pilot Dia 0.2200 5.59MM
Flutes/Inserts 2
Overall Len 2.3750 60.33MM
Length Type Standard
Drill Range 0.1732 4.40MM
Tap Chamfer 4.0P-5.0P
Tool Material Steel
Tap Square 0.1650
Tap Style STI
Thread Type STI-I
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
