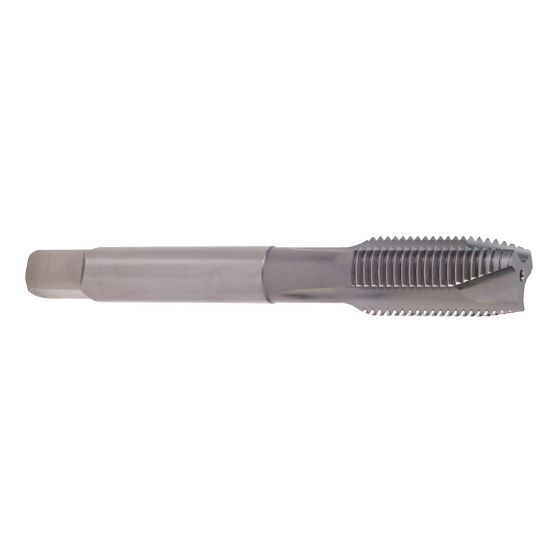

YG-1 T7436182 No.4-48.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7436182
Delivery date: 3-5 days
$11.01

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Thread Pitch 48.00TPI
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Drill Range 0.1181 3.00MM
Tool Material Steel
Tap Square 0.1100
Tap Style STI
Dimension Standard ANSI/ANSI
Thread Limit H3/GH3
Overall Len 2.0000 50.80MM
Flutes/Inserts 2
Length Type Standard
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
