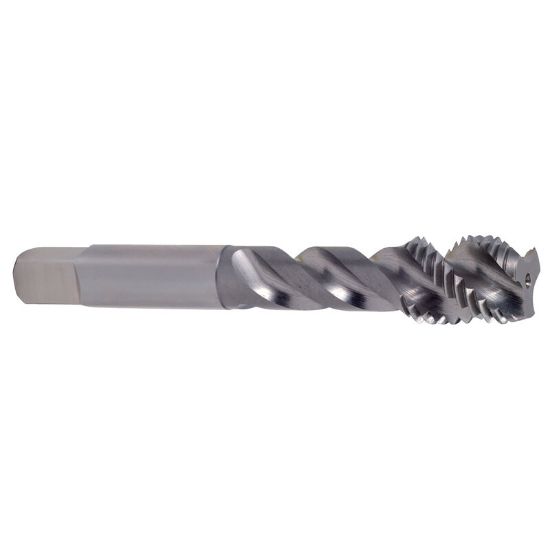

YG-1 T7425363 M8-1.25MM STI Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7425363
Delivery date: 3-5 days
$14.13

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Type STI-M
Shank/Pilot Dia 0.3810 9.68MM
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Type Bottoming
Tap Style STI
Flutes/Inserts 3
Drill Range 0.3307 8.40MM
Thread Size M8
Thread Pitch 1.25MM
Thread Limit D3
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
