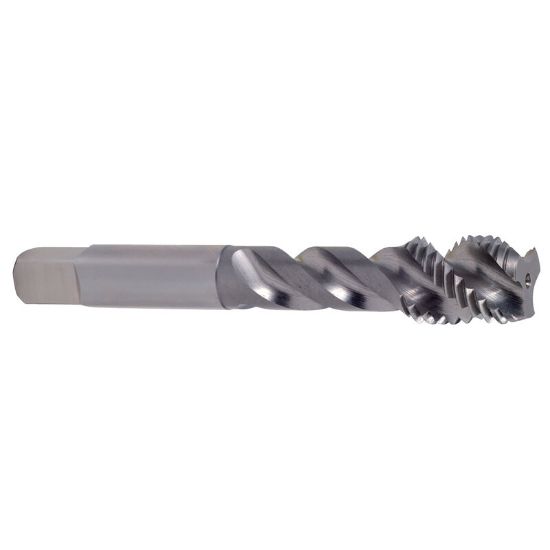

YG-1 T7425313 M6-1.00MM STI Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7425313
Delivery date: 3-5 days
$13.04

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Tapping, STI Thread Insert Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Thread Size M6
Thread Limit D3
Flutes/Inserts 3
Tap Square 0.2380
Dimension Standard ANSI/ANSI
Drill Range 0.2480 6.30MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Tap Style STI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Type STI-M
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
