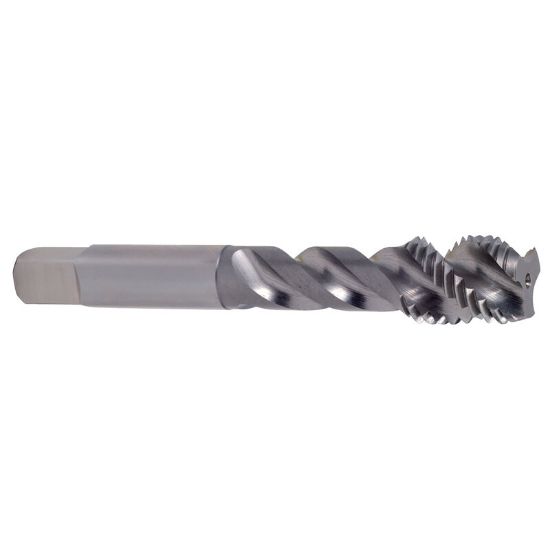

YG-1 T7425283 M5-0.80MM STI Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7425283
Delivery date: 3-5 days
$12.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, STI Thread Insert Tapping, Bottom Tapping, Tapping
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Thread Limit D3
Flutes/Inserts 3
Length Type Standard
Tap Type Bottoming
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1520
Tool Material Steel
Tap Style STI
Thread Type STI-M
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 0.80MM
Drill Range 0.2047 5.20MM
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Chamfer 1.5P-2.0P
Thread Size M5
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
