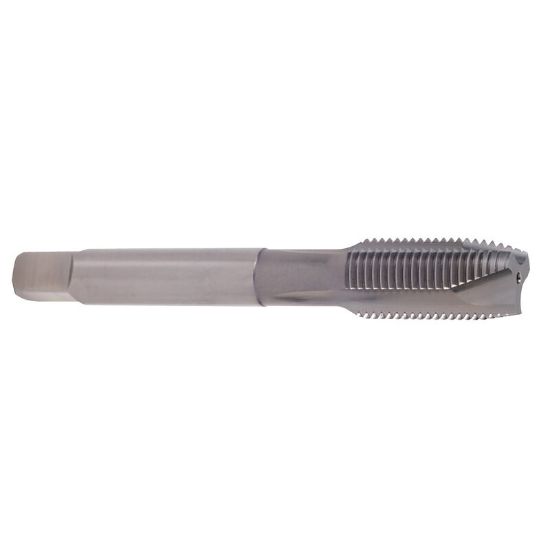

YG-1 T7415504 M12-1.75MM STI Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7415504
Delivery date: 3-5 days
$28.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Length Type Standard
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Type STI-M
Drill Range 0.4921 12.50MM
Tap Chamfer 4.0P-5.0P
Thread Pitch 1.75MM
Tap Square 0.3220
Tap Type Plug
Thread Size M12
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Overall Len 3.5900 91.19MM
Thread Limit D4
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Style STI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
