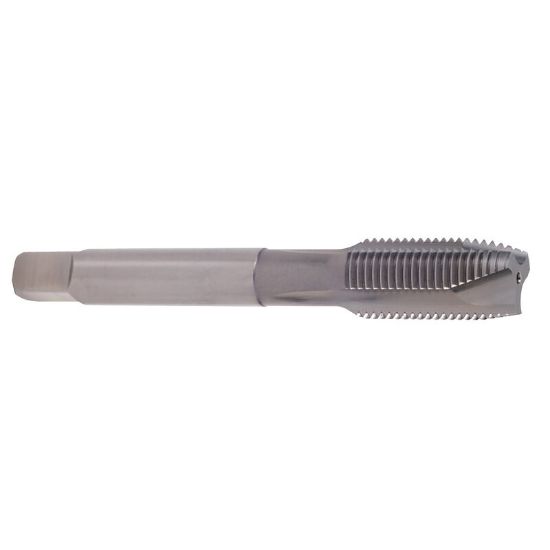

YG-1 T7415313 M6-1.00MM STI Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7415313
Delivery date: 3-5 days
$12.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Style STI
Thread Size M6
Flutes/Inserts 3
Tap Chamfer 4.0P-5.0P
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.2480 6.30MM
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Thread Type STI-M
Tap Square 0.2380
Tap Type Plug
Thread Limit D3
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
