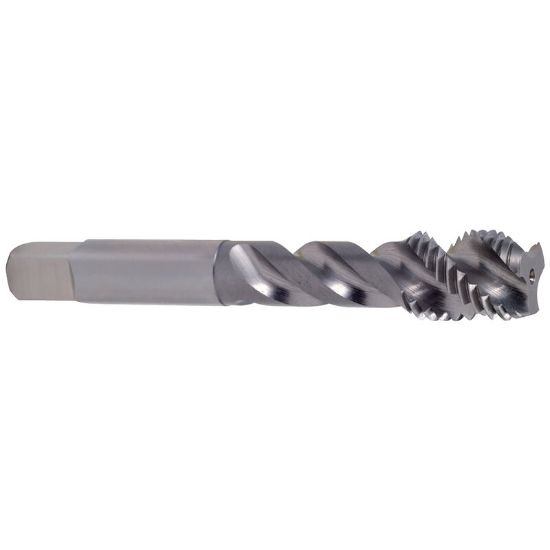

YG-1 T7406463 5/16-24.00TPI STI Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7406463
Delivery date: 3-5 days
$13.33

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application STI Thread Insert Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Size 5/16"
Thread Limit H3/GH3
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Type Bottoming
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Tap Style STI
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.3228 8.20MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
