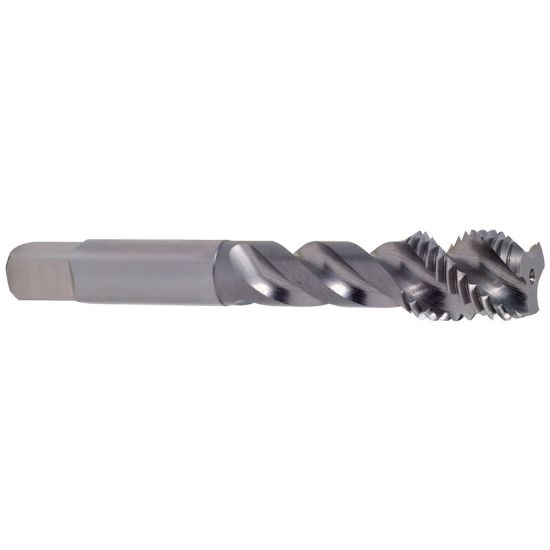

YG-1 T7406323 No.10-24.00TPI STI Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7406323
Delivery date: 3-5 days
$11.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, STI Thread Insert Tapping
Made In USA No
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit H3/GH3
Drill Range 0.2008 5.10MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.2550 6.48MM
Thread Size No.10
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Tap Style STI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
