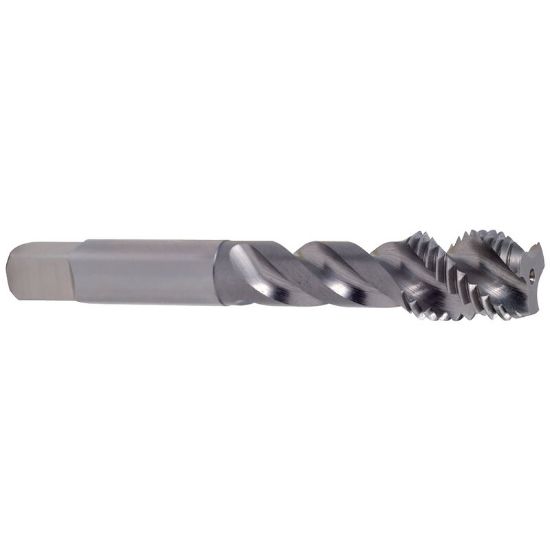

YG-1 T7406283 No.8-32.00TPI STI Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7406283
Delivery date: 3-5 days
$11.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, STI Thread Insert Tapping, Bottom Tapping, Tapping
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Type STI-I
Drill Range 0.1732 4.40MM
Tap Chamfer 1.5P-2.0P
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Thread Limit H3/GH3
Shank/Pilot Dia 0.2200 5.59MM
Tool Material Steel
Tap Square 0.1650
Tap Style STI
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Length Type Standard
Tap Type Bottoming
Thread Size No.8
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
