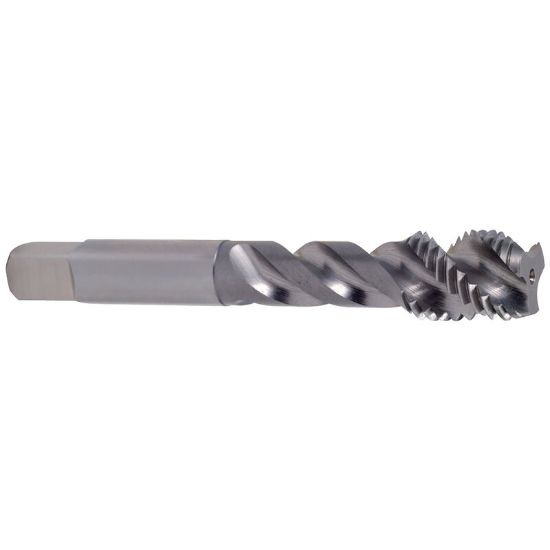

YG-1 T7406242 No.6-32.00TPI STI Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7406242
Delivery date: 3-5 days
$11.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, STI Thread Insert Tapping, Blind Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Drill Range 0.1457 3.70MM
Tool Material Steel
Tap Style STI
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1520
Machine Side Connection Type Tap Collet
Thread Limit H3/GH3
Flutes/Inserts 2
Length Type Standard
Tap Type Bottoming
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 1.5P-2.0P
Thread Size No.6
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
