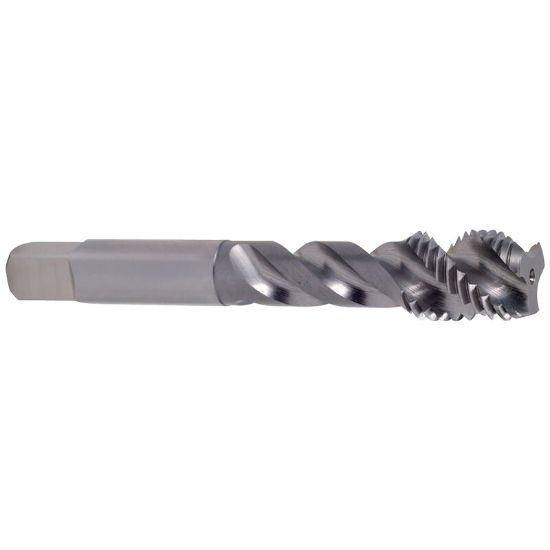

YG-1 T7406162 No.4-40.00TPI STI Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7406162
Delivery date: 3-5 days
$11.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Bottom Tapping, Tapping, Blind Hole Tapping, STI Thread Insert Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Thread Limit H3/GH3
Flutes/Inserts 2
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Thread Pitch 40.00TPI
Thread Type STI-I
Tool Material Steel
Tap Style STI
Machine Side Connection Type Tap Collet
Drill Range 0.1181 3.00MM
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
