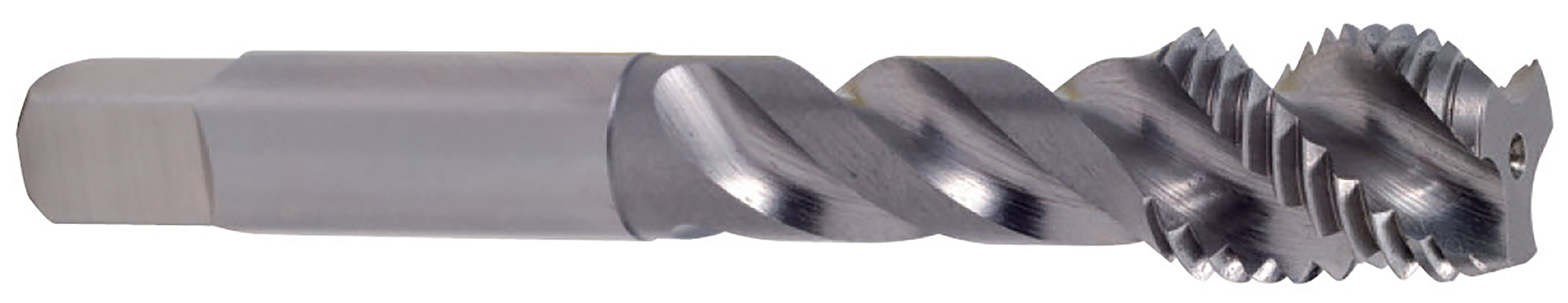

Picture of YG-1 T7406082 No.2-56.00TPI STI Bottoming 1.5P-2.0P HSS-EX Uncoated

YG-1 T7406082 No.2-56.00TPI STI Bottoming 1.5P-2.0P HSS-EX Uncoated

Part Number: YG-T7406082
Tool Cross-Reference
Looking for alternatives…
STI tap drill
No.2 × 56.00TPI — 2-56 STI
Drill for: Aluminum
0.0938" 3/32
159 drills available
See all drills at 0.0938" →
Drill for: Steel, Manganese, Plastic
0.0960" #41
101 drills available
See all drills at 0.0960" →

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1165924
Vendor: Sussex Tool and Supply
$23.74

Description

YG-1 T7406082 No.2x56.00TPI STI Bottoming 1.5P-2.0P HSS-EX Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style STI
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 56.00TPI
Thread Size No.2
Tap Drill Range 0.0906 2.30MM
Tap Square 0.1100
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Standards & Identification
Dimension Standard ANSI/ANSI
