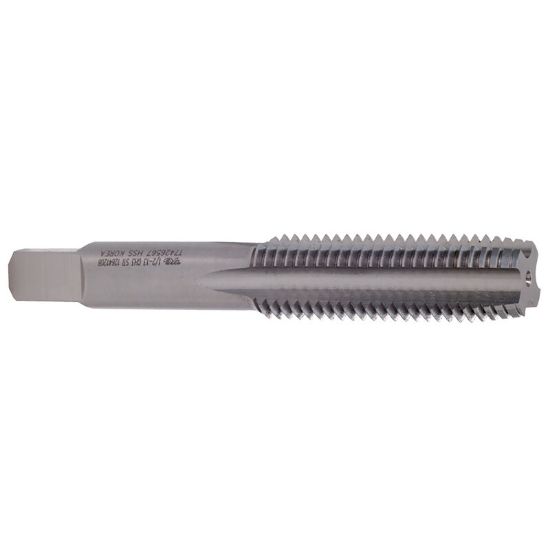

Picture of YG-1 T7405367 M8-1.25MM STI Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T7405367 M8-1.25MM STI Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7405367
Delivery date: 3-5 days
$10.91

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Style STI
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
Flutes/Inserts 3
Drill Range 0.3307 8.40MM
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 1.25MM
Thread Limit D3
Tool Material Steel
Thread Size M8
Tap Type Plug
Thread Type STI-M
Shank/Pilot Dia 0.3810 9.68MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
