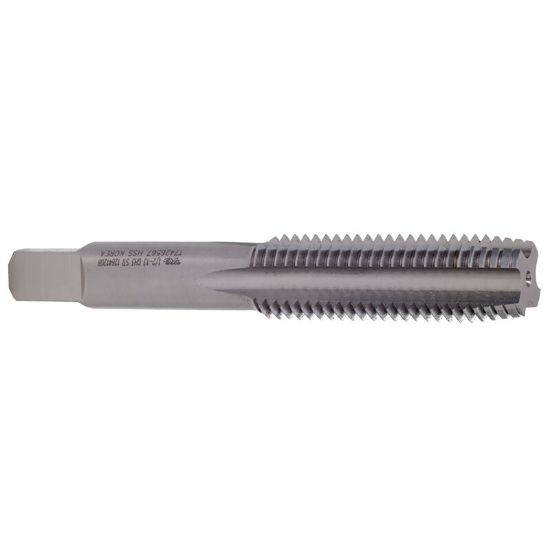

Picture of YG-1 T7405287 M5-0.80MM STI Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T7405287 M5-0.80MM STI Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7405287
Delivery date: 3-5 days
$9.56

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Type STI-M
Shank/Pilot Dia 0.1940 4.93MM
Tool Material Steel
Tap Style STI
Thread Pitch 0.80MM
Drill Range 0.2047 5.20MM
Thread Limit D3
Flutes/Inserts 3
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1520
Tap Type Plug
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Chamfer 4.0P-5.0P
Thread Size M5
Dimension Standard ANSI/ANSI
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
