  • YG-1 T7405208 M3-0.50MM STI Bottoming 1.5P-2.0P HSSE-V3 Uncoated

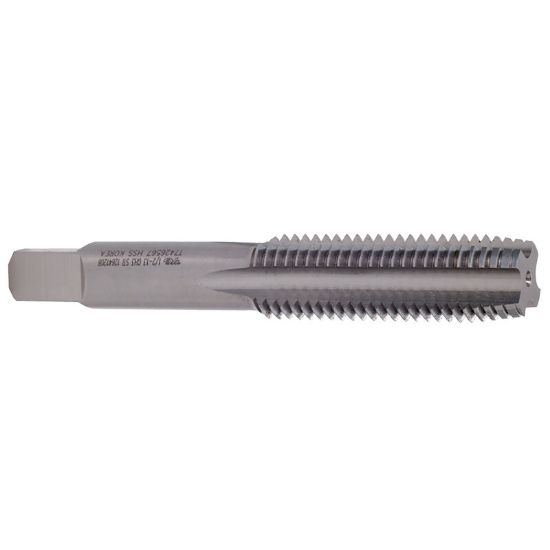

Picture of YG-1 T7405208 M3-0.50MM STI Bottoming 1.5P-2.0P HSSE-V3 Uncoated

YG-1 T7405208 M3-0.50MM STI Bottoming 1.5P-2.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7405208
Delivery date: 3-5 days
$11.55

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, STI Thread Insert Tapping, Blind Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Thread Size M3
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.1240 3.15MM
Machine Side Connection Type Tap Collet
Thread Limit D2
Flutes/Inserts 3
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Tap Type Bottoming
Tap Style STI
Tap Chamfer 1.5P-2.0P
Thread Type STI-M
Length Type Standard
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
