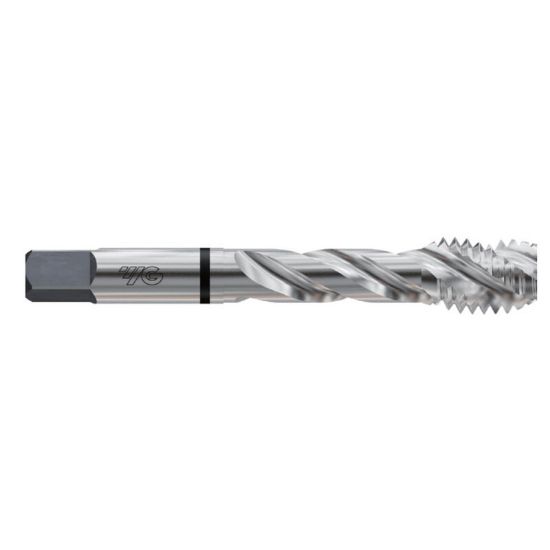

YG-1 T7383 No.12-28.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7383
Delivery date: 3-5 days
$9.68

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Tap Style Cut Spiral Flute
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Drill Range 0.1787 4.54MM - 0.1882 4.78MM
Thread Pitch 28.00TPI
Tap Square 0.1650
Thread Size No.12
Thread Limit H3/GH3
Shank/Pilot Dia 0.2200 5.59MM
Length Type Standard
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
