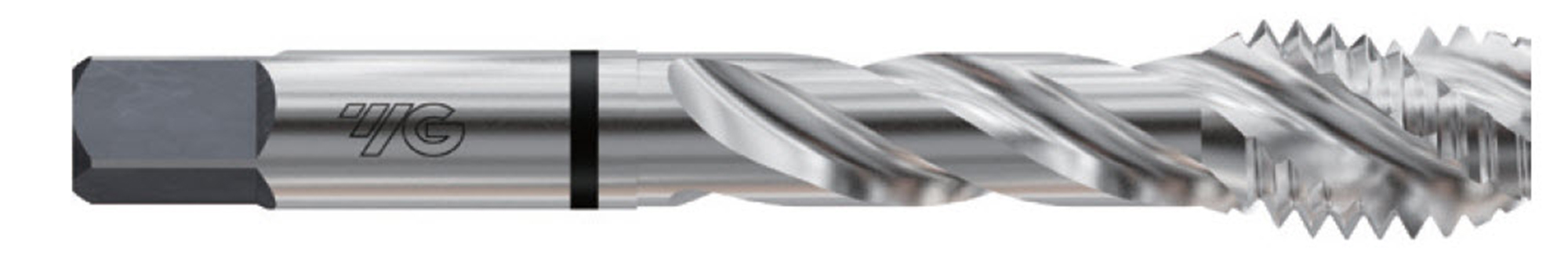

Picture of YG-1 T7323 No.10-24.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

YG-1 T7323 No.10-24.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Part Number: YG-T7323

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1165844
Vendor: Sussex Tool and Supply
$10.65
YG-1 T7323 No.10x24.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, <40HRC Steel, Copper
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Thread Size No.10
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1520
Tap Chamfer 1.0P-2.0P
