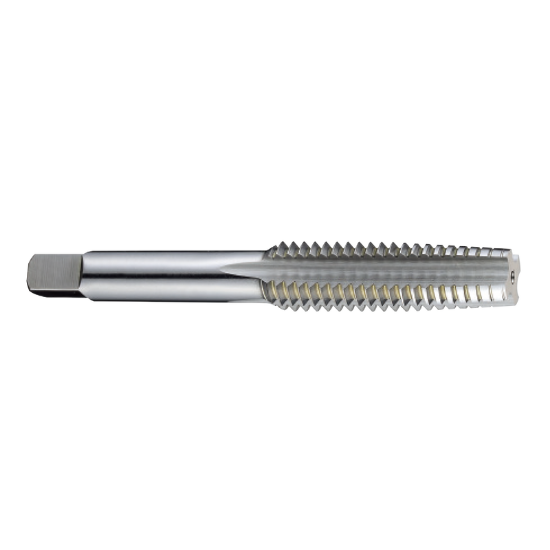

YG-1 T7316786 1-8.00TPI Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7316786
Delivery date: 3-5 days
$61.20

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Taper Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tap Type Taper
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Square 0.6000
Thread Limit H4/GH4
Thread Size 1"
Length Type Standard
Tap Chamfer 9.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.8000 20.32MM
Thread Type NC/UNC
Overall Len 5.1250 130.18MM
Flutes/Inserts 4
Tap Style Hand Tap
Thread Pitch 8.00TPI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
