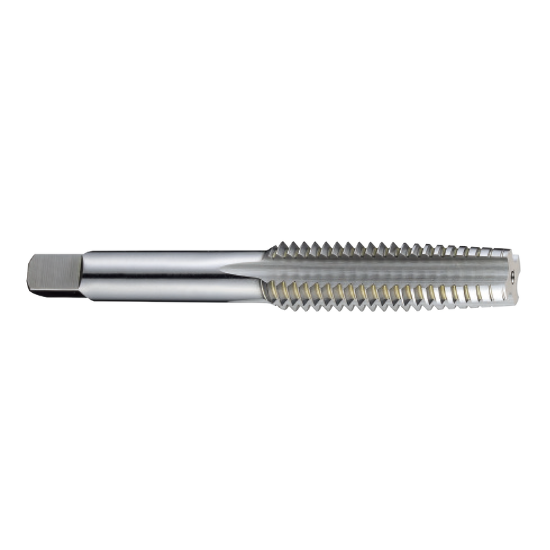

YG-1 T7316126 No.3-48.00TPI Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7316126
Delivery date: 3-5 days
$5.08

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Taper Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 48.00TPI
Machine Side Connection Type Tap Collet
Drill Range 0.0772 1.96MM - 0.0827 2.10MM
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Standard
Tap Chamfer 9.0P
Tap Style Hand Tap
Thread Size No.3
Shank/Pilot Dia 0.1410 3.58MM
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Tap Type Taper
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Overall Len 1.8120 46.02MM
Tap Square 0.1100
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
