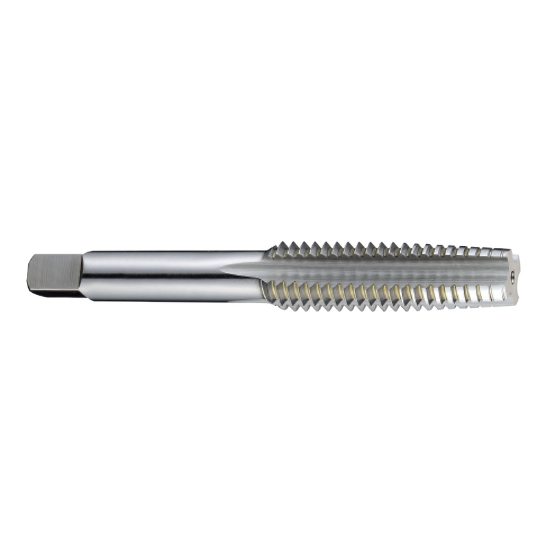

YG-1 T7315786 M24-3.00MM Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7315786
Delivery date: 3-5 days
$78.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Taper Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Type Metric
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.7600 19.30MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Limit D8
Machine Side Connection Type Tap Collet
Tap Type Taper
Thread Size M24
Thread Pitch 3.00MM
Tap Square 0.5700
Length Type Standard
Flutes/Inserts 4
Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Tap Chamfer 9.0P
Tap Style Hand Tap
Overall Len 4.9100 124.71MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
