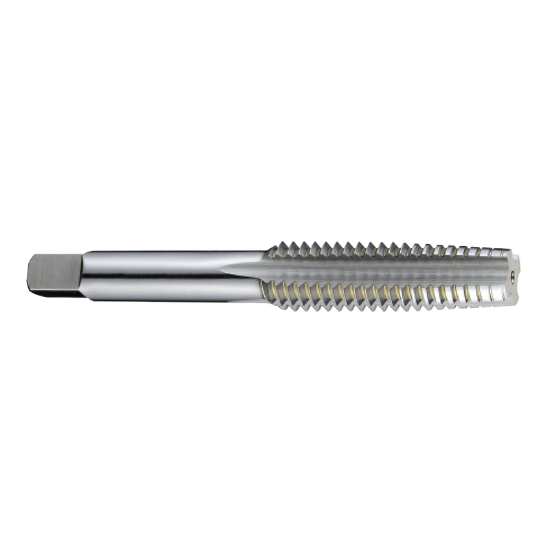

YG-1 T7315726 M20-1.50MM Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7315726
Delivery date: 3-5 days
$44.53

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Cut Tapping, Taper Tapping, Tapping
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.6520 16.56MM
Length Type Standard
Tap Chamfer 9.0P
Tap Style Hand Tap
Thread Type Metric
Thread Limit D6
Flutes/Inserts 4
Thread Size M20
Drill Range 0.7299 18.54MM - 0.7413 18.83MM
Dimension Standard ANSI/ANSI
Tap Square 0.4890
Tap Type Taper
Machine Side Connection Type Tap Collet
Thread Pitch 1.50MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Overall Len 4.4700 113.54MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
