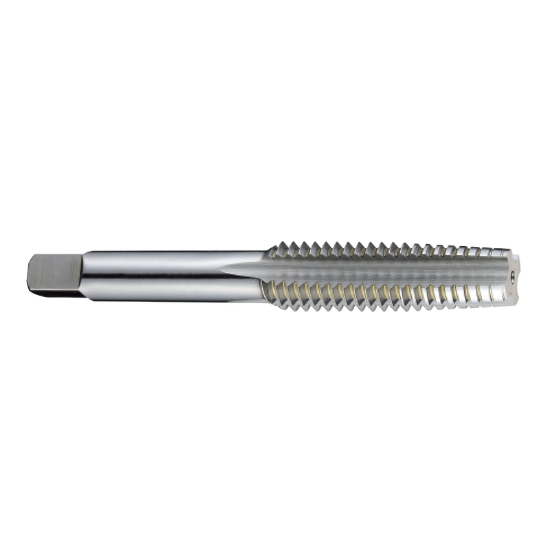

YG-1 T7315616 M16-1.50MM Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7315616
Delivery date: 3-5 days
$31.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Taper Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Overall Len 3.8120 96.82MM
Tap Type Taper
Thread Pitch 1.50MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Machine Side Connection Type Tap Collet
Thread Size M16
Flutes/Inserts 4
Length Type Standard
Tap Chamfer 9.0P
Tap Style Hand Tap
Tap Square 0.3600
Shank/Pilot Dia 0.4800 12.19MM
Thread Type Metric
Thread Limit D6
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
