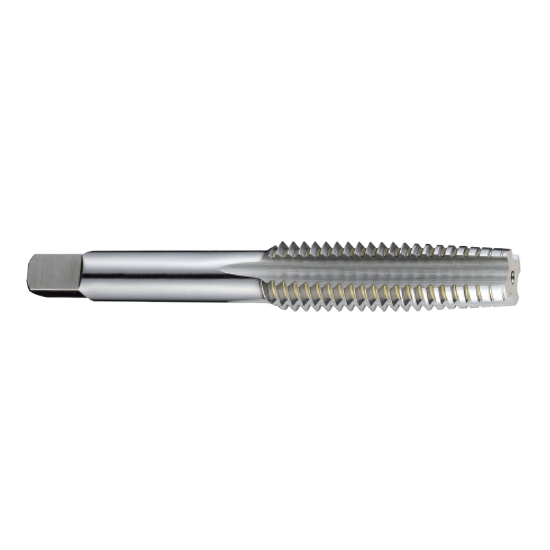

YG-1 T7315546 M14-2.00MM Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7315546
Delivery date: 3-5 days
$25.89

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Tapping, Taper Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 2.00MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Dimension Standard ANSI/ANSI
Tap Type Taper
Flutes/Inserts 4
Length Type Standard
Tap Chamfer 9.0P
Tap Style Hand Tap
Thread Limit D7
Thread Type Metric
Thread Size M14
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Machine Side Connection Type Tap Collet
Overall Len 3.5900 91.19MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
