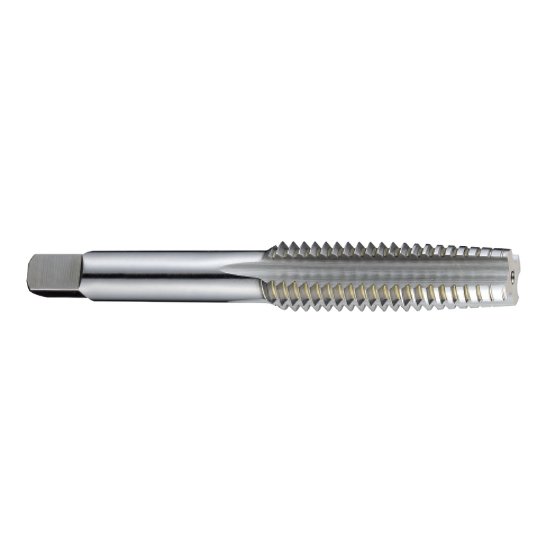

YG-1 T7315526 M12-1.25MM Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7315526
Delivery date: 3-5 days
$17.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Taper Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Type Metric
Dimension Standard ANSI/ANSI
Thread Limit D5
Machine Side Connection Type Tap Collet
Thread Pitch 1.25MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Shank/Pilot Dia 0.3670 9.32MM
Tap Square 0.2750
Length Type Standard
Flutes/Inserts 4
Tap Chamfer 9.0P
Tap Style Hand Tap
Thread Size M12
Overall Len 3.3800 85.85MM
Tap Type Taper
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
