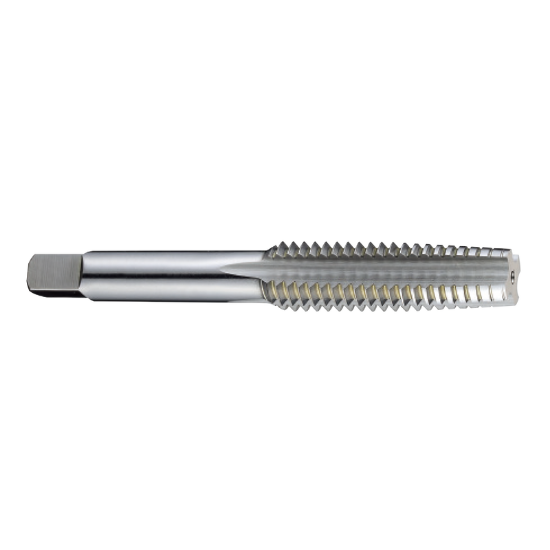

YG-1 T7315426 M10-1.50MM Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7315426
Delivery date: 3-5 days
$8.93

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Taper Tapping, Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type Metric
Thread Limit D6
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Thread Size M10
Dimension Standard ANSI/ANSI
Tap Type Taper
Thread Pitch 1.50MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Square 0.2860
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Flutes/Inserts 4
Length Type Standard
Tap Chamfer 9.0P
Tap Style Hand Tap
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
