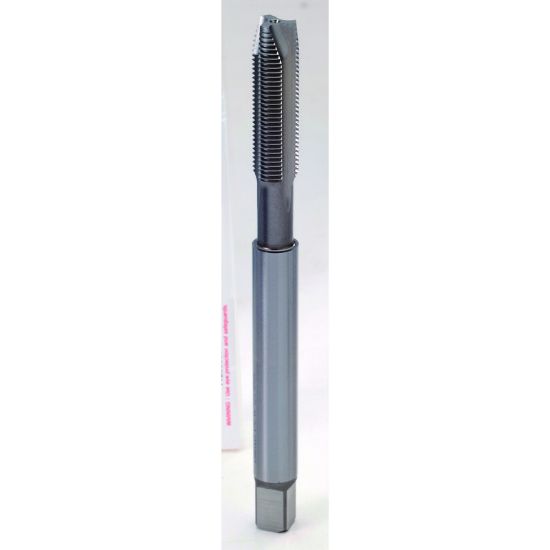

YG-1 T7236503 3/8-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7236503
Delivery date: 3-5 days
$30.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Limit H3/GH3
Shank/Pilot Dia 0.3810 9.68MM
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
Tool Material Steel
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Overall Len 6.0000 152.40MM
Tap Style Cut Spiral Point
Tap Type Plug
Thread Size 3/8"
Dimension Standard ANSI/6"
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
