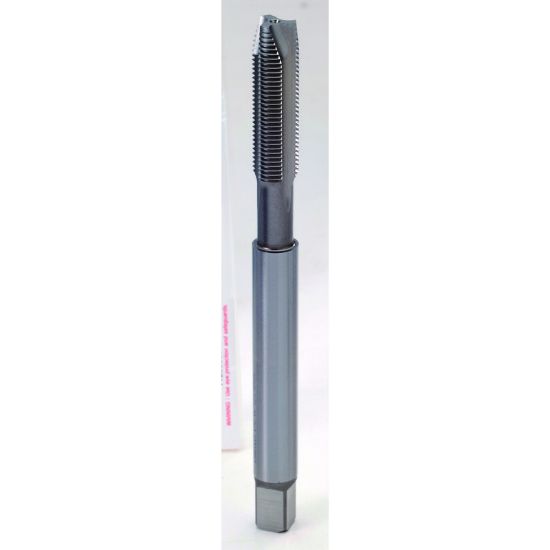

YG-1 T7236403 1/4-20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7236403
Delivery date: 3-5 days
$22.28

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Tool Material Steel
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Cut Rating <25HRC Steel, Stainless Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Flutes/Inserts 2
Length Type Long
Thread Size 1/4"
Overall Len 6.0000 152.40MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
