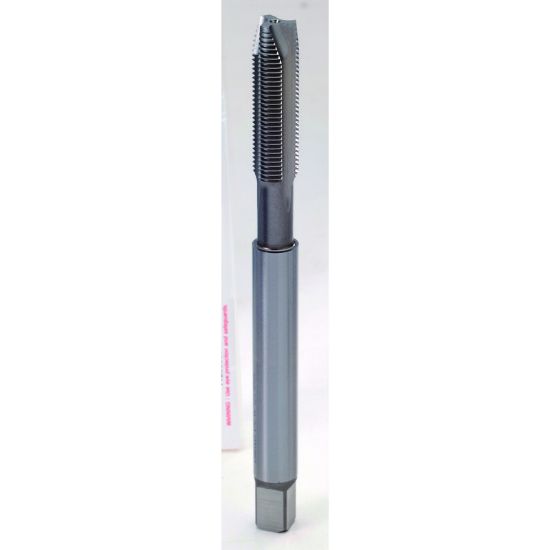

YG-1 T7236343 No.10-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7236343
Delivery date: 3-5 days
$21.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Flutes/Inserts 2
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Long
Thread Pitch 24.00TPI
Tool Material Steel
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 4.0P-5.0P
Cut Rating <25HRC Steel, Stainless Steel
Overall Len 6.0000 152.40MM
Tap Square 0.1520
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
