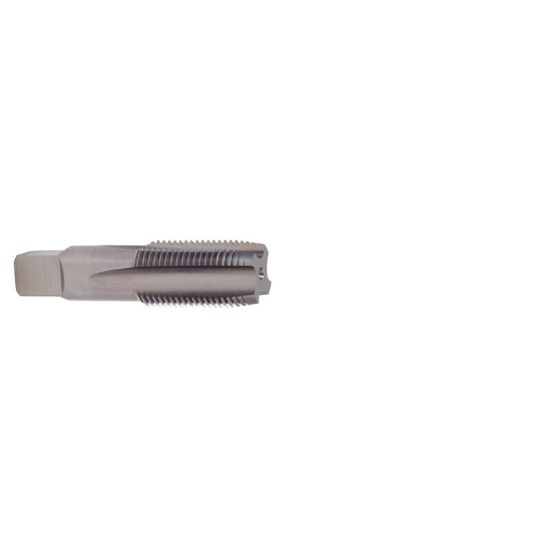

YG-1 T6L36700 3/4-14.00TPI Pipe Straight Flute Pipe 4.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6L36700
Delivery date: 3-5 days
$77.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Straight Flute Pipe
Performance Rating General Performance
Package Size 1
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flute Direction STRAIGHT
Tap Type Pipe
Dimension Standard ANSI/ANSI
Flutes/Inserts 4
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Thread Size 3/4"
Tap Style Pipe Straight Flute
Length Type Standard
Thread Type NPSM/NPSF
Tool Material Steel
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Overall Len 3.2500 82.55MM
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
