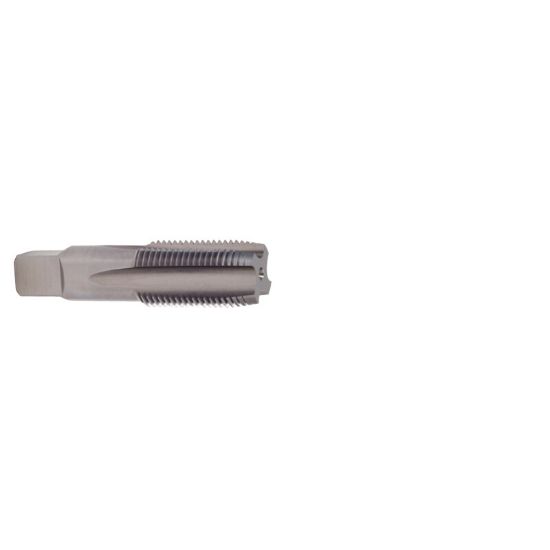

YG-1 T6L36560 1/2-14.00TPI Pipe Straight Flute Pipe 4.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6L36560
Delivery date: 3-5 days
$55.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Straight Flute Pipe, Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 4
Thread Size 1/2"
Thread Type NPSM/NPSF
Tool Material Steel
Machine Side Connection Type Tap Collet
Overall Len 3.1250 79.38MM
Tap Type Pipe
Tap Square 0.7480
Length Type Standard
Shank/Pilot Dia 0.6870 17.45MM
Tap Style Pipe Straight Flute
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Dimension Standard ANSI/ANSI
Drill Range 0.6870 17.45MM
Thread Limit PIPE
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
