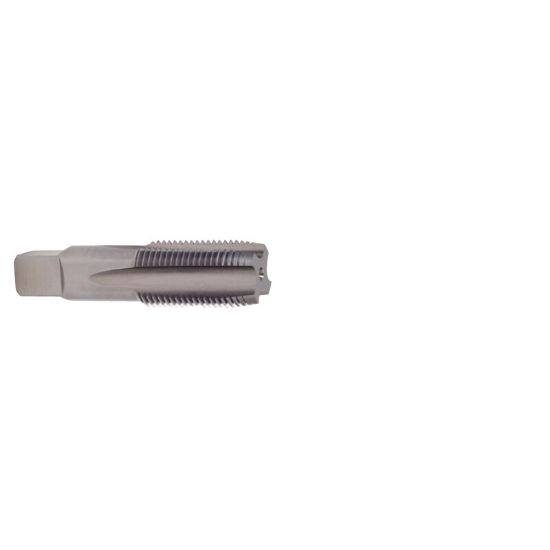

YG-1 T6L36400 1/4-18.00TPI Pipe Straight Flute Pipe 4.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6L36400
Delivery date: 3-5 days
$26.48

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Straight Flute Pipe, Pipe Tapping, Tapping
Shipping State Illinois
Package Size 1
Made In USA No
Coating Steam Oxide
Performance Rating General Performance
Dimensional Specifications
Thread Size 1/4"
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.5620 14.27MM
Tap Square 0.4210
Overall Len 2.4370 61.90MM
Tap Style Pipe Straight Flute
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Type NPSM/NPSF
Tool Material Steel
Thread Pitch 18.00TPI
Thread Limit PIPE
Flute Direction STRAIGHT
Tap Type Pipe
Flutes/Inserts 4
Length Type Standard
Dimension Standard ANSI/ANSI
Drill Range 0.4528 11.50MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
