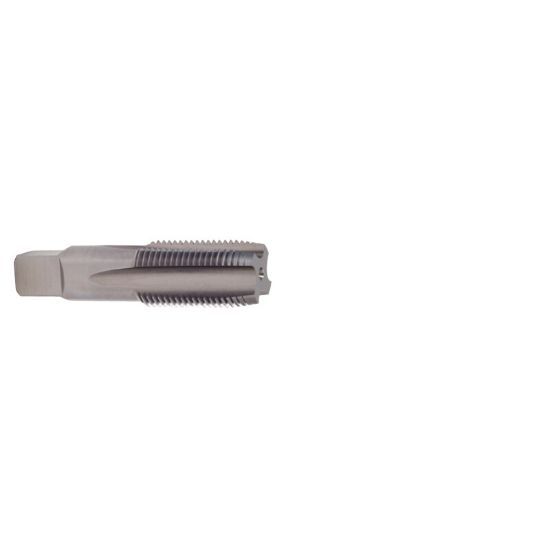

YG-1 T6536700 3/4-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6536700
Delivery date: 3-5 days
$77.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Straight Flute Pipe, Tapping, Pipe Tapping
Shipping State Illinois
Coating Steam Oxide
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Limit PIPE
Tap Square 0.6790
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Tap Type Pipe
Thread Type NPSM/NPSF
Tap Style Pipe Straight Flute
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Machine Side Connection Type Tap Collet
Overall Len 3.2500 82.55MM
Drill Range 0.9059 23.01MM
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
