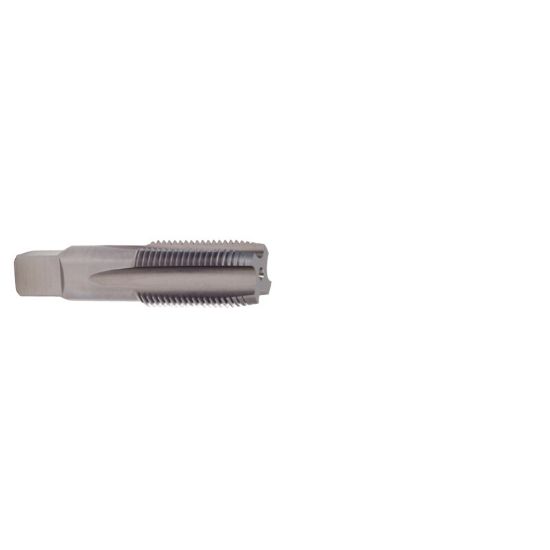

YG-1 T6536480 3/8-18.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6536480
Delivery date: 3-5 days
$34.59

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating General Performance
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Thread Type NPSM/NPSF
Tool Material Steel
Flute Direction STRAIGHT
Shank/Pilot Dia 0.7000 17.78MM
Overall Len 2.5620 65.07MM
Tap Type Pipe
Tap Style Pipe Straight Flute
Length Type Standard
Thread Pitch 18.00TPI
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.5622 14.28MM
Tap Square 0.5310
Thread Size 3/8"
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
