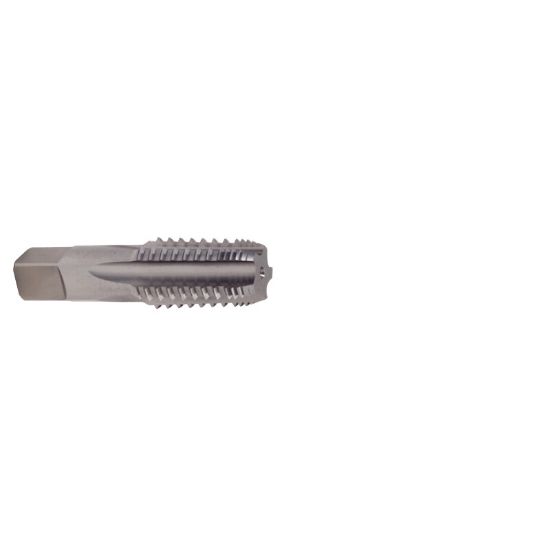

YG-1 T6505780 1-11.50TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6505780
Delivery date: 3-5 days
$153.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Tapping, Skip Tooth Pipe, Pipe Tapping
Coating Steam Oxide
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Tap Square 0.8430
Thread Limit PIPE
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Drill Range 1.1406 28.97MM
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 3.7500 95.25MM
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Size 1"
Thread Pitch 11.50TPI
Length Type Standard
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
