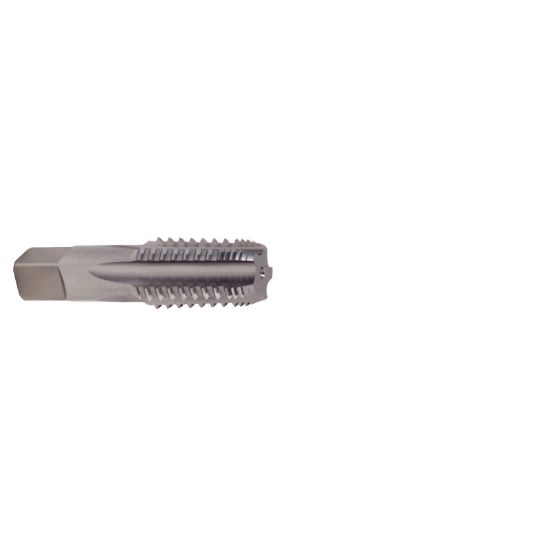

YG-1 T6505560 1/2-14.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6505560
Delivery date: 3-5 days
$70.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Skip Tooth Pipe
Performance Rating General Performance
Package Size 1
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 3.1250 79.38MM
Drill Range 17.8500 453.39MM
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Square 0.5150
Tap Chamfer 2.0P-3.0P
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Type NPT/NPTF/ANPT
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Length Type Standard
Thread Size 1/2"
Tool Material Steel
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
