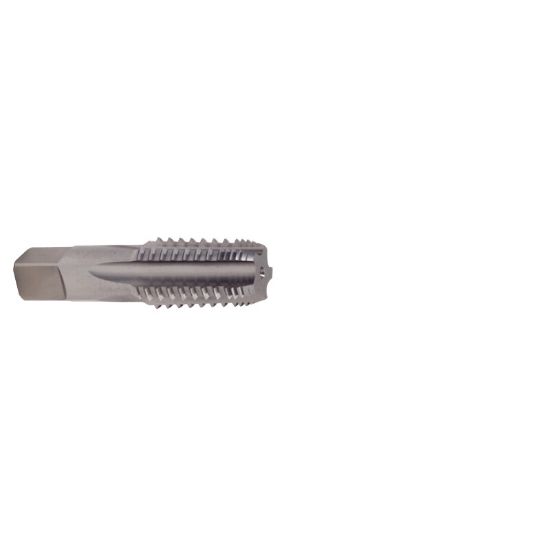

YG-1 T6505480 3/8-18.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6505480
Delivery date: 3-5 days
$44.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Skip Tooth Pipe, Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Performance Rating General Performance
Dimensional Specifications
Thread Size 3/8"
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.7000 17.78MM
Overall Len 2.5620 65.07MM
Tap Square 0.5310
Tap Type Pipe
Thread Type NPT/NPTF/ANPT
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Dimension Standard ANSI/ANSI
Thread Pitch 18.00TPI
Thread Limit PIPE
Drill Range 0.5622 14.28MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
