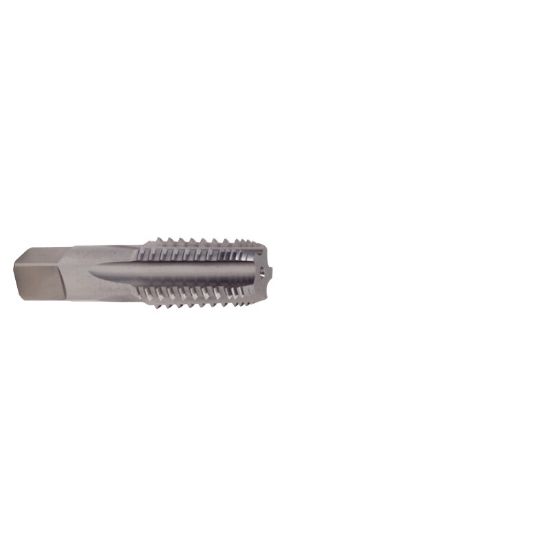

YG-1 T6505210 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6505210
Delivery date: 3-5 days
$31.55

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Skip Tooth Pipe, Pipe Tapping, Tapping
Shipping State Illinois
Package Size 1
Made In USA No
Coating Steam Oxide
Performance Rating General Performance
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 2.1250 53.98MM
Flutes/Inserts 5
Tap Square 0.2340
Tap Style Pipe Skip Tooth
Machine Side Connection Type Tap Collet
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Drill Range 0.3319 8.43MM
Thread Limit PIPE
Tap Chamfer 2.0P-3.0P
Thread Size 1/8"
Thread Pitch 27.00TPI
Tap Type Pipe
Shank/Pilot Dia 0.3120 7.92MM
Length Type Standard
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
