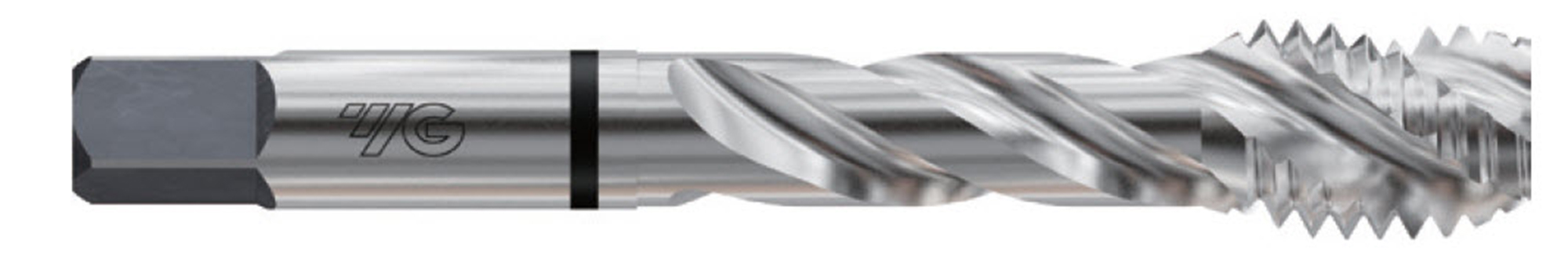

Picture of YG-1 T6405 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Uncoated

YG-1 T6405 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Uncoated

Part Number: YG-T6405

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1165191
Vendor: Sussex Tool and Supply
$16.01
YG-1 T6405 1/4"x20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Uncoated H5/GH5 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, <40HRC Steel, Copper
Overall Length 2.5000 63.50MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Size 1/4"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
