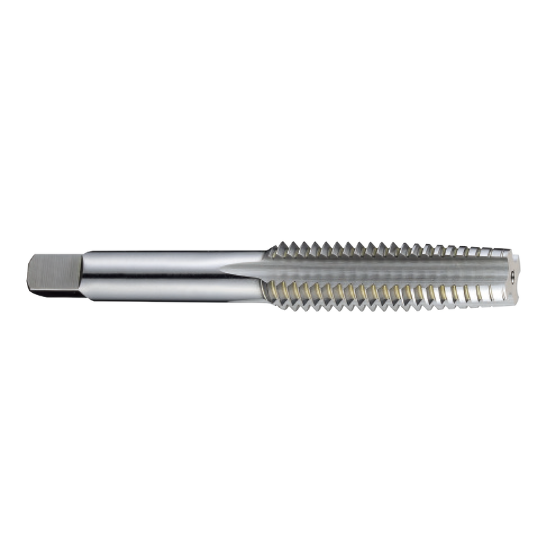

YG-1 T6315526 M12-1.25MM Hand Tap Taper 9.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6315526
Delivery date: 3-5 days
$14.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Application Cut Tapping, Taper Tapping, Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Tap Chamfer 9.0P
Thread Size M12
Overall Len 3.3800 85.85MM
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Dimension Standard ANSI/ANSI
Tap Type Taper
Thread Limit D5
Flutes/Inserts 4
Tap Style Hand Tap
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 1.25MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
