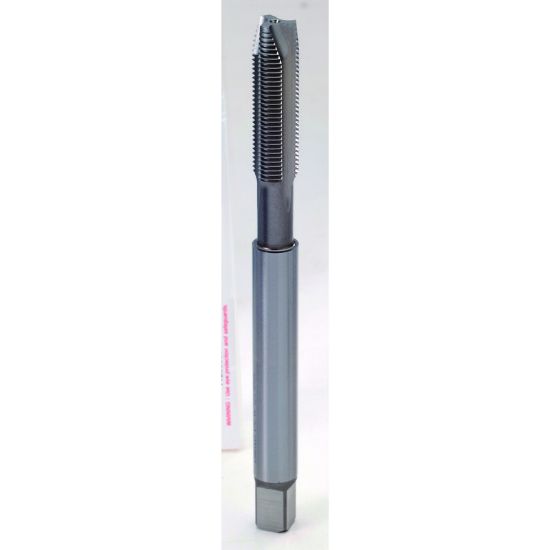

YG-1 T6236563 1/2-13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6236563
Delivery date: 3-5 days
$38.65

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size 1/2"
Tool Material Steel
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 6.0000 152.40MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Type Plug
Thread Pitch 13.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
