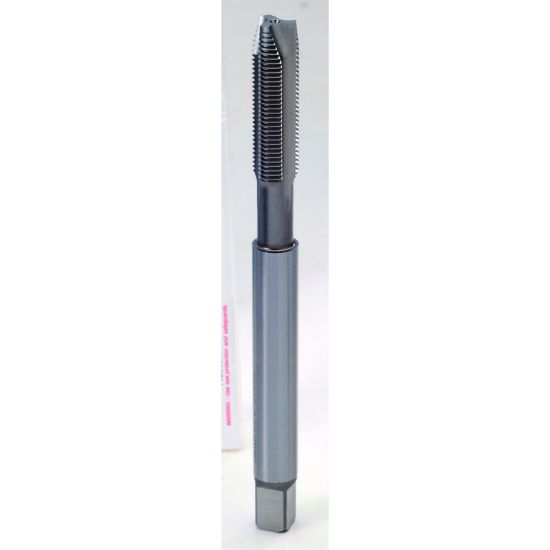

YG-1 T6236503 3/8-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6236503
Delivery date: 3-5 days
$30.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Coating Steam Oxide
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tool Material Steel
Overall Len 6.0000 152.40MM
Tap Type Plug
Cut Rating <25HRC Steel, Stainless Steel
Thread Size 3/8"
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.3810 9.68MM
Length Type Long
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
