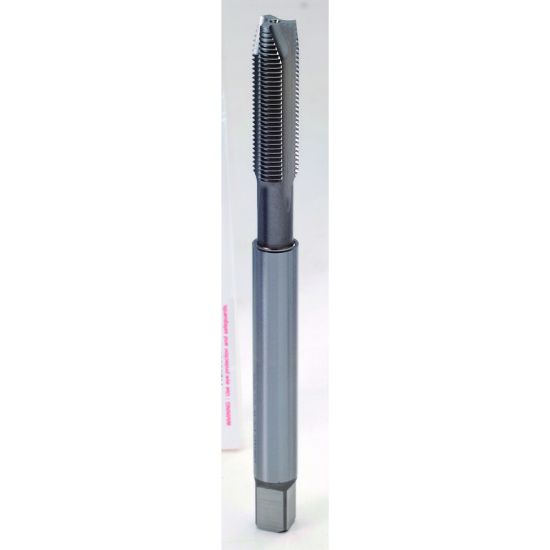

YG-1 T6236343 No.10-32.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T6236343
Delivery date: 3-5 days
$21.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Limit H3/GH3
Cut Rating <25HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Overall Len 6.0000 152.40MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Style Cut Spiral Point
Thread Size No.10
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Length Type Long
Tap Square 0.1520
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
