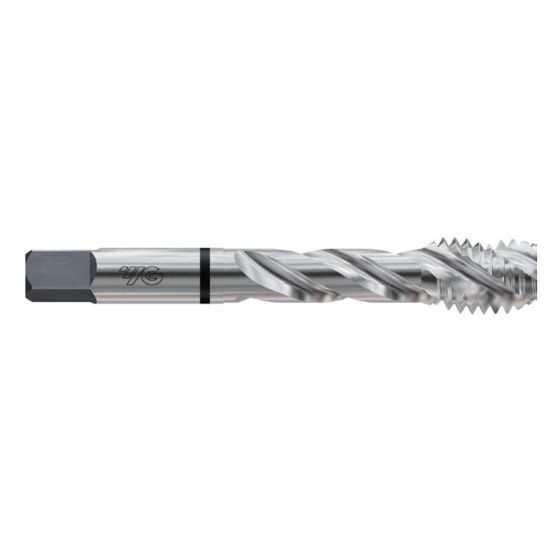

YG-1 T5766 M22-1.50MM Cut Spiral Flute Plug 4.0P-5.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T5766
Delivery date: 3-5 days
$87.17

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Drill Range 0.8087 20.54MM - 0.8201 20.83MM
Dimension Standard ANSI/ANSI
Flutes/Inserts 4
Thread Size M22
Tap Square 0.5230
Thread Type Metric
Thread Limit D6
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.6970 17.70MM
Tap Type Plug
Tap Style Cut Spiral Flute
Tap Chamfer 4.0P-5.0P
Machine Side Connection Type Tap Collet
Overall Len 4.6870 119.05MM
Thread Pitch 1.50MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
